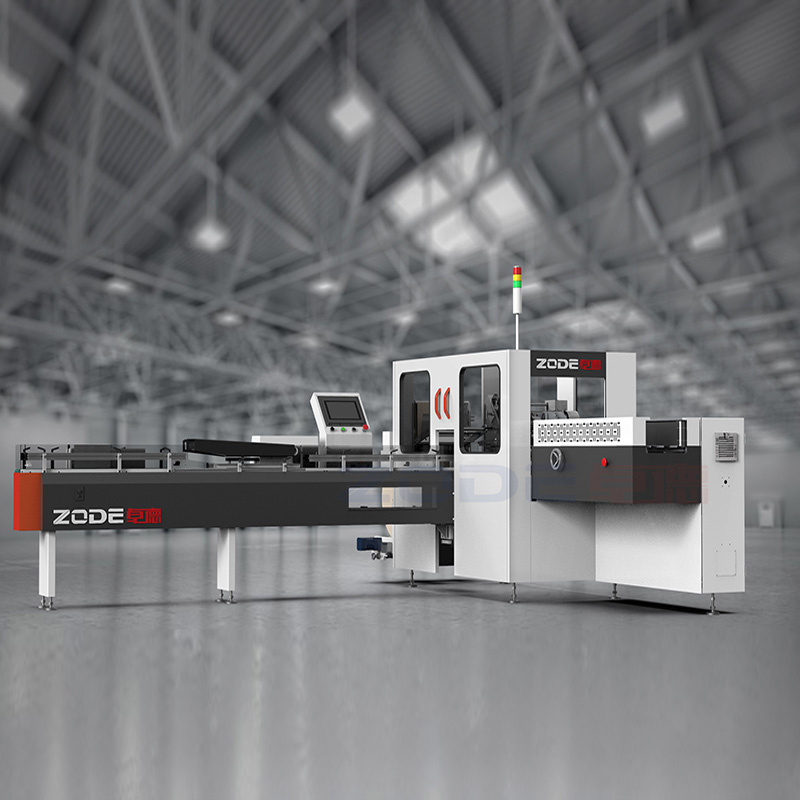

1) ZD-D100 model wrapping machine is suitable for fully automated single-pack facial tissue, kitchen paper, hand towel, square tissue, napkins with film, final pack length, width height are larger.
2) The whole machine adopts 15 sets of absolute servo drive control method, which have the advantages of complete running function configuration, high use efficiency, simple operation, wide range of specifications, fast specification conversion, convenient maintenance, low cost of use.
3) Basic operating function configuration: automatic tissue shaping function, automatic detection speed reduction function of paper towel incoming material flow, automatic alarm shutdown function for double-pack feeding, automatic alarm shutdown function of feeding rod jam, automatic detection alarm of paper towel height Shutdown function, automatic detection function of roll film consumption, automatic alarm shutdown function when the lower film unit is blocked, paper hook shaping function, jog operation function, linkage operation function
4) Using 15-axis full servo motion control system, the stable speed can reach 90 packs/min.
Items | Main technical parameters | Remarks |
Scope of application | For packing facial tissue, h towel napkin | |
Feeding mode | Full automatic intelligent feeding mode | four-stage intelligent flexible feeding mode |
Designed speed | ≤ 100 packs/min | related to packaging specifications |
Stable speed | ≤ 90 packs/min | related to packaging specifications |
Tissue Length | 100 mm- 260 mm | Customized if oversize |
Tissue Height | 60 mm- 170 mm | |
Tissue Width | 90 mm- 110 mm | |
Formats Changeover Mould | 3 sets | Buyer should provide the dimension scope |
Machine Size | L4150 mm*W3800 mm* H1745 mm | |
Machine Weight | 2960KG | |
Packing Material | Double-sided heat sealing film, CPP, CPT, PE, SPP | |
Film Thickness | 0.04mm-0.05mm | |
Max Film Reel Diameter | 600mm | |
Reel Core Diameter. | 76mm | International Std |
Film Reel Width | 190-490mmmm | |
Compression Air | ≥ 0.5Mpa | Buyer Self provided |
Power Supply | 380V/50HZ | State Power Std |
Total Power | 17.5KW | Total Power of main motor, servo motor, variable speed motor heating motor |
Variation range of adaptive voltage | +/-10% | State Std |
I/O Input | 24VDC | Controlled by electrical system |
I/O Output | 24VDC | Controlled by electrical system |
Motion Control Mechanism | 15 Axis servo motor positioning control | By E-CAM curve motion |
General Transmission Mechanism | 20crmnti Mechanical CAM＋E-CAM | |
Device Color Surface Finishing | Dark Green, Static Spraying & Baking Painting | Pantone RAL7032 |
Packing Method | 3D Packing | Film lap seal+ ends Gusset folding seal |
